Topping D20 USB DAC PCM1793 - Silver

  Print
Topping D20 USB DAC PCM1793 - Silver - 1 Topping D20 USB DAC PCM1793 - Silver - 2 Topping D20 USB DAC PCM1793 - Silver - 3 Topping D20 USB DAC PCM1793 - Silver - 4 Topping D20 USB DAC PCM1793 - Silver - 5 Topping D20 USB DAC PCM1793 - Silver - 6 Topping D20 USB DAC PCM1793 - Silver - 7
Customer Reviews :
(1 review)
SKU
TNSK0CSV
Berat Pengiriman
2 kg
Garansi
1 Bulan
  • SUPER DISCOUNTS

    Nikmati belanja murah ditambah diskon spesial

  • 1-DAY SHIPPING

    Pesanan diproses sesaat setelah pembayaran lunas

  • TOP PRODUCTS

    Semua barang kami terjamin mutu dan kualitasnya

  • LOWEST PRICE

    Kami selalu memberikan harga terbaik tanpa mengurangi mutu

Overview of Topping D20 USB DAC PCM1793

The Topping D20 DAC is an easy, affordable way to increase the sound quality of your digital sources. It even features front-panel input switching, so it's easy to flip between USB, coaxial, and optical digital inputs at a moment's notice!

Features
PCM1793 DAC

For those using a computer as a music source, the benefits of using an external DAC are hard to overstate. The D20 will connect using the included USB cable. It's "plug and play", requiring no additional software installation. The digital-to-analog processing is taken outside the computer chassis and all its electrical interference that can degrade fidelity. In addition, the quality of components inside a well-designed DAC will rival almost any sound card. If using a computer as a primary audio source, moving from the onboard sound card to a DAC will likely yield a dramatic improvement in sound quality.

3 Input Signal

Topping, who has made a fine reputation on desktop-sized Class D amplifiers, is branching out! The D20 is a feature-packed digital analog converter that accepts USB, digital coaxial, or digital optical signals, and is switchable from the front panel.

CNC-Machined Aluminum Construction

The housing of this little amp is made from aluminium with a nice and Thick front plate and a high quality powder coated and ribbed housing. The connectors used are gold plated and of exellent quality.

High Grade Components

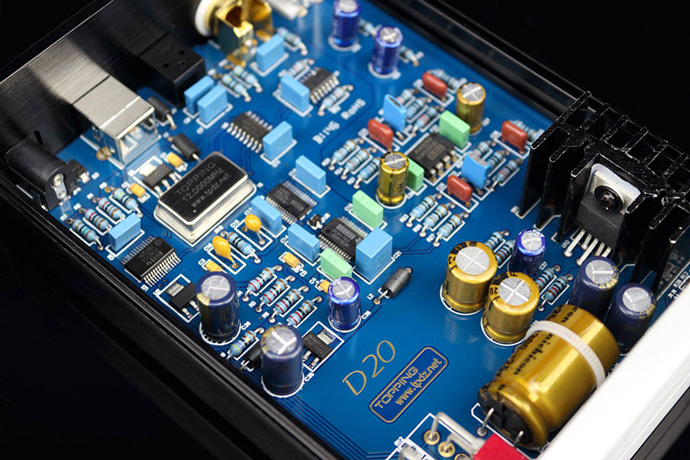

The D20 holds fast to that proven formula, using a Texas Instruments TI PCM1793 DAC, TI DIR9001 receiver, TI PCM2704 USB receiver, TI OPA2134 Operational Amplifier, resistors from KOA, and capacitors from EPCOS, ERO, and Nichicon. HIFI Electronic Components:

  • KOA Resistance
  • Nichicon FW Capacitance
  • Nichicon MUSE ES Capacitance
  • EPCOS Capacitance

Spesification
Digital input USB + S/PDIF(Optical) + S/PDIF(RCA)
Analog output 1 x RCA(L & R)
Maximum sample bit of DAC 24bit
Maximum sample rate of DAC 96kHz
Net weight Approx 503g (unit only)
Dimensions Approx 16CM x 11.5CM x 5CM
DAC:
Maximum output voltage swing [email protected]
Minimum THD+N 0.0008% (48kHz sampling rate)
THD+N(@1kHz) 0.0012% (48kHz sampling rate)
Dynamic range 110dB (48kHz sampling rate)
Frequency response 20-20kHz±0.2dB
Noise <6μV
SNR 110dB
Maximum sample bit of USB 16bit
Maximum sample rate of USB 48kHz
Maximum sample bit of S/PDIF 24bit
Maximum sample rate of S/PDIF 96kHz
Package Contents

All item you get from the box:

  • 1 x Topping D20 DAC
  • 1 x Power Adapter
  • 1 x USB Cable
  • 1 x User Manual

Video YouTube di bawah hanyalah ilustrasi fungsi dan penggunaan produk. Kami tidak menjamin barang kami 100% mirip dengan produk dalam video YouTube tersebut.

Photos of Topping D20 USB DAC PCM1793

Video of Topping D20 USB DAC PCM1793

Customer Reviews

Login to review
  • DAC Topping D20 Ok banget kualitasnya

    by kuswadi on Jan 1st 2015 1 / 3 people found this review helpful
    Puas dengan produk ini. Disandingkan dg speaker Logitech Z5500 suara petikan gitar akustik Sunghajun menjadi lebih akurat, lebih detil, dan open. Begitu juga ketika disandingkan dg speaker book shelf Hivi Swan D1010 IV.
    Best price performance.
