Overview of Topping DX7s Balanced DAC Headphone Amplifier

Better than it looks

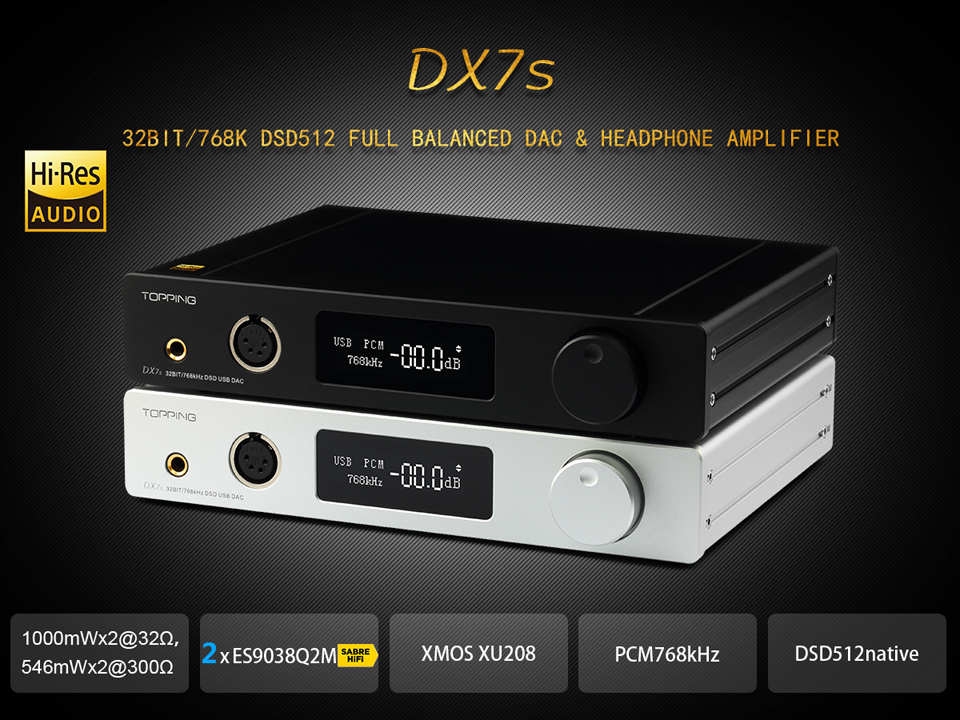

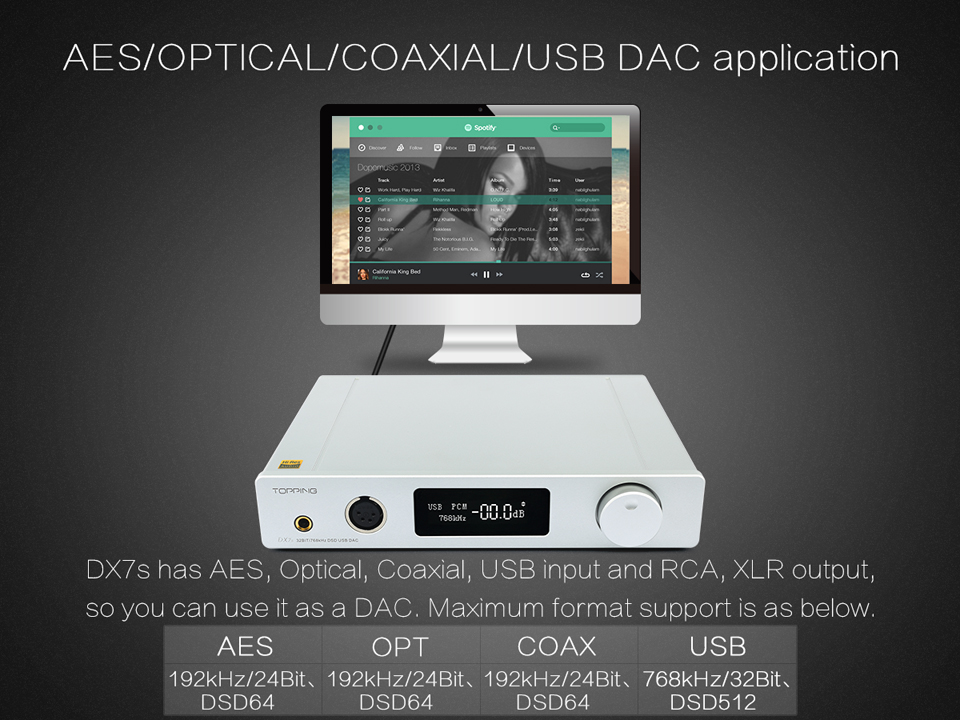

TOPPING DX7s is a full balanced DAC & headphone amp with USB, Coaxial, Optical, AES input and Line Out, XLR, 6.35 headphone and balanced headphone output. Besides, DX7s also have a USB to Coaxial output, you can use it as a digital interface even DX7s is turned off.

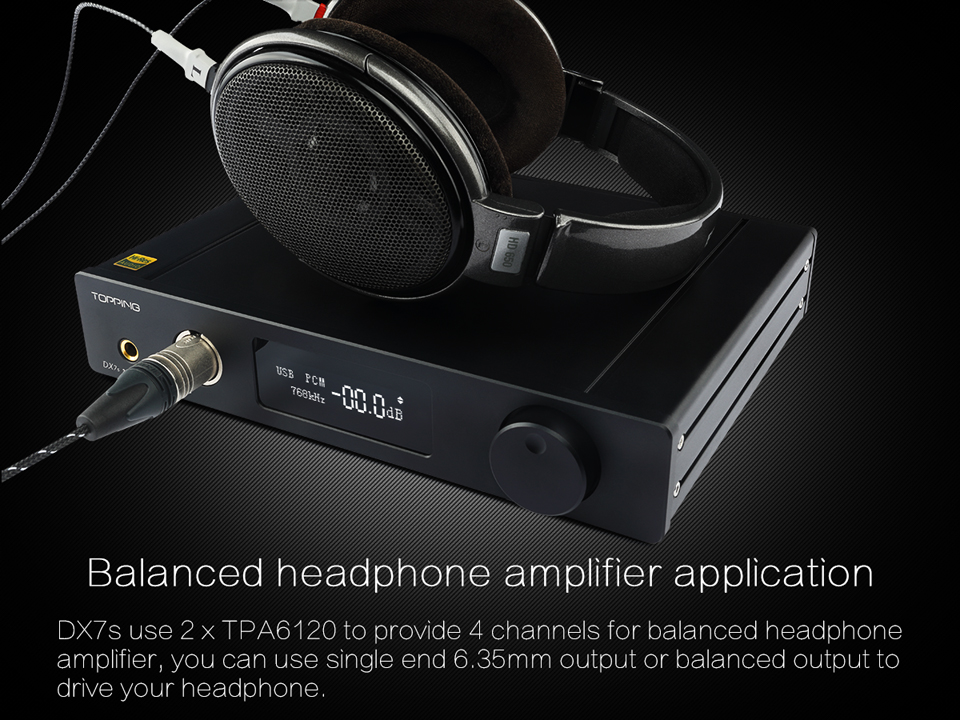

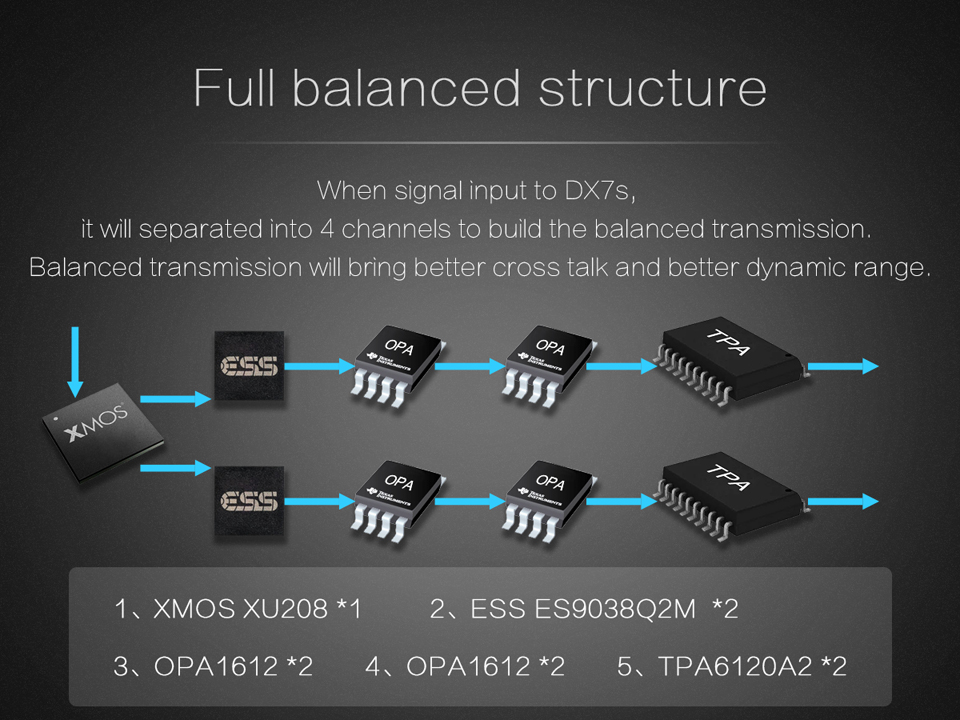

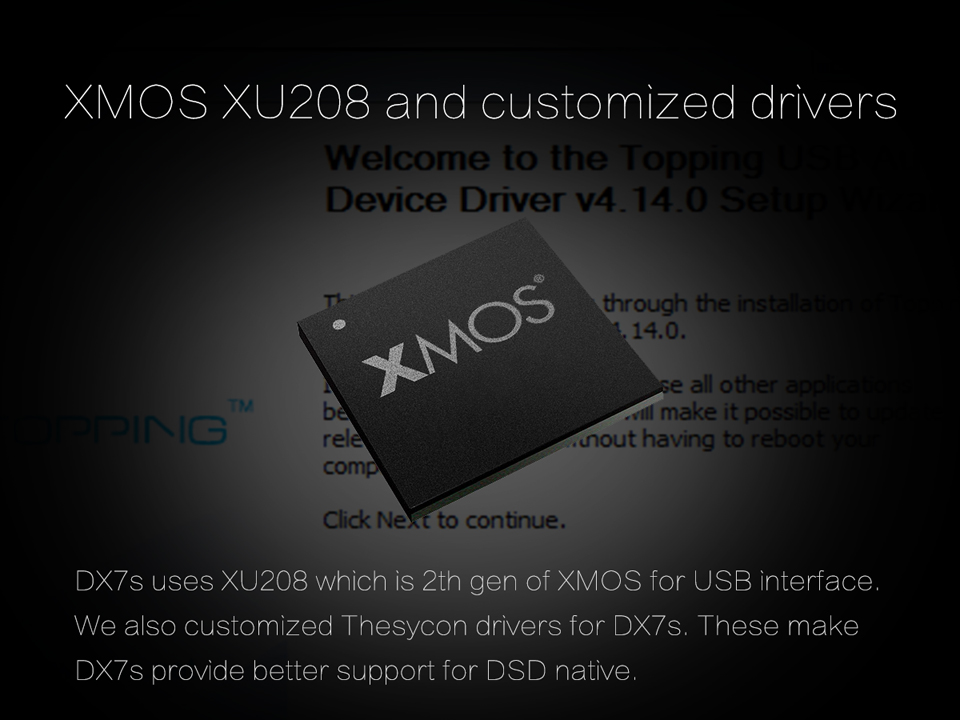

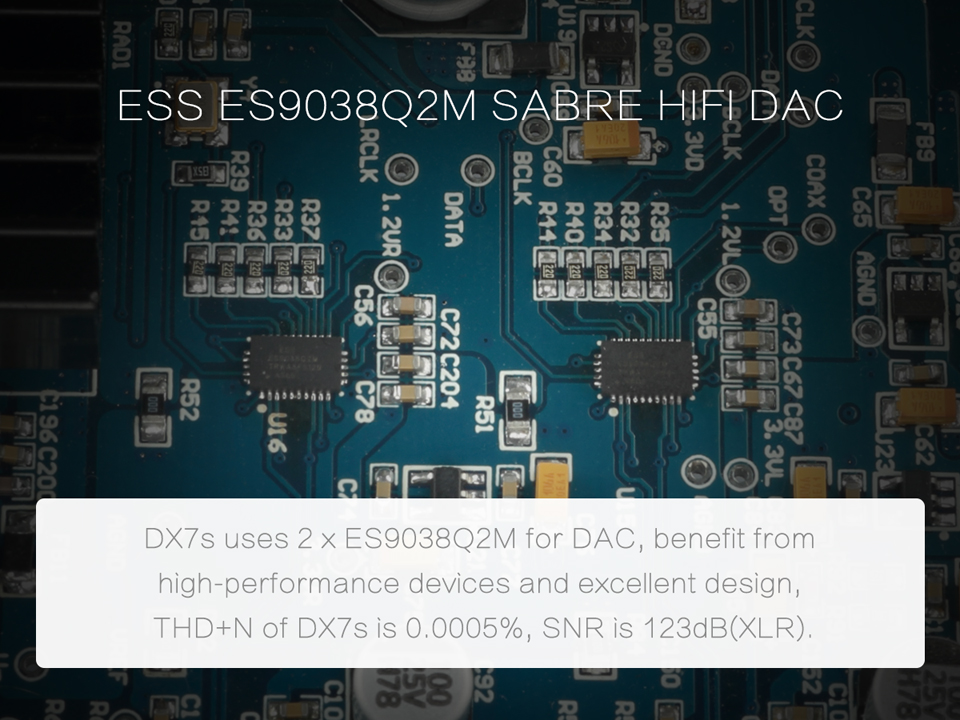

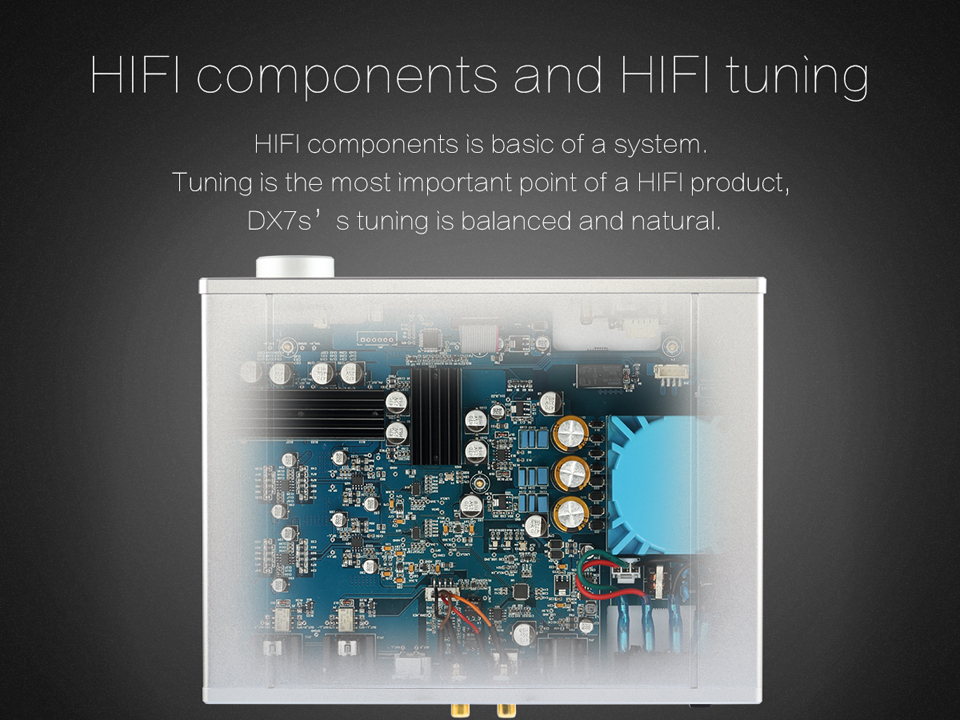

DX7s use XMOS(XU208) + 2 x ES9038Q2M + 4 x OPA1612 for DAC, in addition, DX7s use customized drivers(Win 7 or above) from Thesycon, all these factors makes DX7s support 32bit/768kHz and DSD512(Native). You can see the detail info from the 2.23 inch OLED screen while DX7s is working. DX7s use 2 x TPA6120 for balanced headphone amp, providing maximum1000mW x [email protected] load.

Detail Spesification

Support

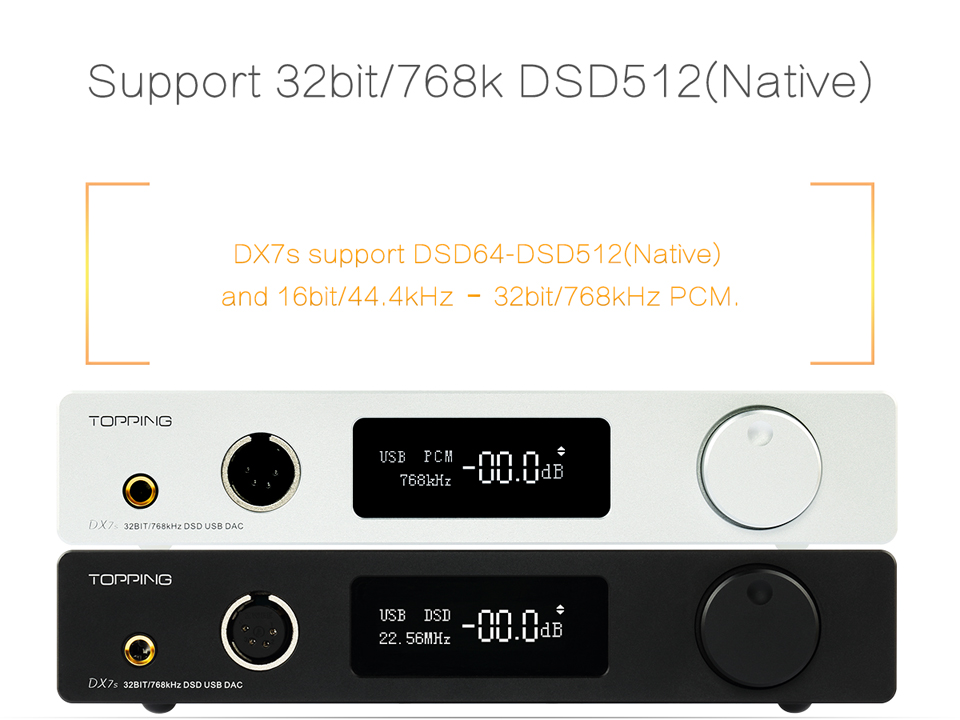

  • USB in: 44.1–6768 kHz/16–32 bit, DSD64–DSD256 (DoP), DSD64–DSD512 (native)
  • Opt/AES/coax in: 44.1–192 kHz/16–24 bit, DSD64 (DoP)
  • Coax out: 44.1–192 kHz/16–24 bit

Headphone Out, 6.35mm

  • THD+N, A-weighted: <0.005% at 1 kHz, 345 mW (32 ohms); <0.007% at 20–20 kHz, 345 mW (32 ohms); <0.0008% at 1 kHz, 78 mW (300 ohms); <0.0008% at 20–20 kHz, 78 mW (300 ohms)
  • SNR, A-weighted: >121 dB at 1 kHz
  • Frequency response: 20 Hz–20 kHz (+/- 0.35 dB)
  • Output level: 13.3 Vpp at 32 ohms, 18.7 Vpp at 300 ohms
  • Noise: <5.2 uVrms
  • Crosstalk: -124 dB at 1 kHz
  • Channel balance: 0.3 dB
  • Output impedance: <10 ohms
  • Output power: 690 mW x 2 at 32 ohms, THD+N <1%; 146 mW x 2 at 300 ohms, THD+N <1%
  • Drive ability: 16–300 ohms

Headphone Out, Balanced

  • THD+N, A-weighted: <0.002% at 1 kHz, 515 mW (32 ohms); <0.003% at 20–20 kHz, 515 mW (32 ohms); <0.0006% at 1 kHz, 273 mW (300 ohms); <0.0008% at 20–20 kHz, 273 mW (300 ohms)
  • SNR, A-weighted: >120 dB at 1 kHz
  • Frequency response: 20 Hz–20 kHz (+/- 0.12 dB)
  • Output level: 16.2 Vpp at 32 ohms, 36.2 Vpp at 300 ohms
  • Noise: <8.8 uVrms
  • Crosstalk: -129 dB at 1 kHz
  • Channel balance: 0.3 dB
  • Output impedance: <20 ohms
  • Output power: 1,000 mW x 2 at 32 ohms, THD+N <1%; 546 mW x 2 at 300 ohms, THD+N <1%
  • Drive ability: 32–600 ohms

Line Out / Coax Input, RCA

  • THD+N, A-weighted: <0.0005% at 1 kHz, <0.0006% at 20–20 kHz
  • SNR, A-weighted: >122 dB at 1 kHz
  • Frequency response: 20 Hz–20 kHz (+/- 0.35 dB)
  • Output level: 2 Vrms at 0 dBFS
  • Noise: <1.7 uVrms
  • Crosstalk: -127 dB at 1 kHz
  • Channel balance: 0.3 dB
  • Output impedance: 100 ohms
  • Line Out / Coax Input, XLR
  • THD+N, A-weighted: <0.0005% at 1 kHz, <0.0006% at 20–20 kHz
  • SNR, A-weighted: >123 dB at 1 kHz
  • Frequency response: 20 Hz–20 kHz (+/- 0.35 dB)
  • Output level: 4 Vrms at 0 dBFS
  • Noise: <2.6 uVrms
  • Crosstalk: -133 dB at 1 kHz
  • Channel balance: 0.3 dB
  • Output impedance: 200 ohms

Physical

  • Input: USB, opt, AES, coax
  • Digital input: Coax
  • Line out: XLR, RCA
  • Headphone out: 6.35 mm, balanced

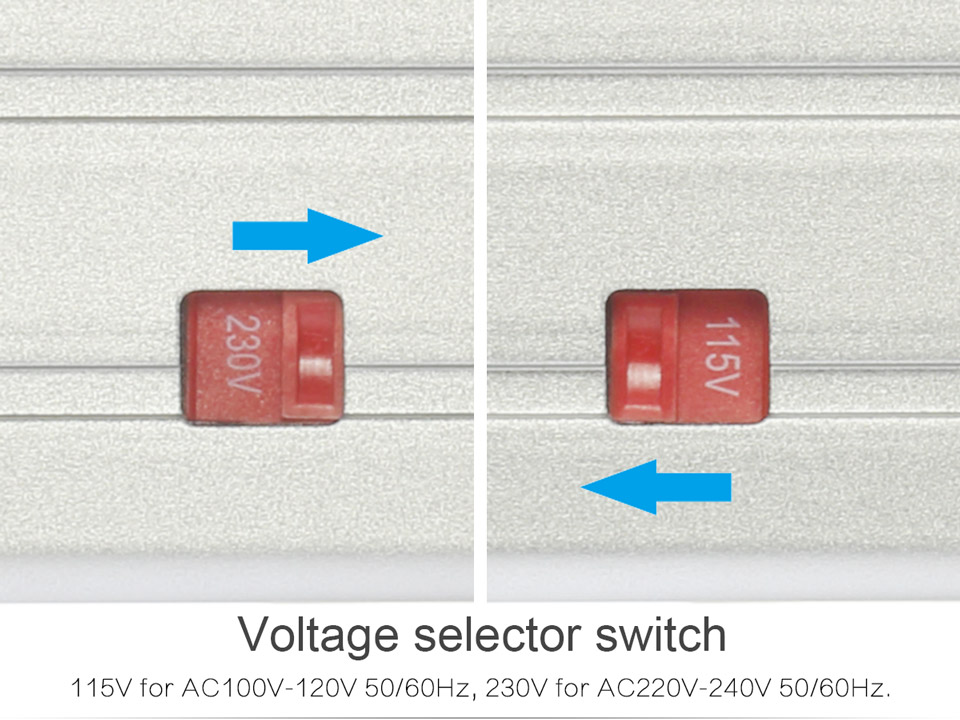

  • Power input: AC110/AC220, 50 Hz/60 Hz
  • Dimensions: 9.8 x 8.1 x 2 in (25 x 20.5 x 5 cm)
  • Weight: 4.3 lbs (1.95 kg)
Package Contents

Barang-barang yang Anda dapatkan dalam kotak produk:

  • 1 x Topping DX7s Balanced DAC Headphone Amplifier
  • 1 x 6.35mm to 3.5mm adapter
  • 1 x USB data cable
  • 1 x AC power cord
  • 1 x product manual
  • 1 x warranty card
