Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W - Black

  Print
Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W - Black - 1 Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W - Black - 2 Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W - Black - 3 Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W - Black - 4 Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W - Black - 5 Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W - Black - 6 Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W - Black - 7
Customer Reviews :
(1 review)
SKU
TNSK0TBK
Berat Pengiriman
1 kg
Garansi
1 Bulan
Pilihan Warna
Stok Sekarang
Online / COD Stok tersedia
Produk tersedia di 3 toko cabang lainnya.
Normal Rp. 1.507.800
Rp. 1.177.600
hemat Rp. 330.200,- (22%)
Add to cart Simpan ke Watch List
Pembelian dalam jumlah banyak hubungi:
Silahkan tunjuk Ekspedisi Murah yang Anda inginkan
  • SUPER DISCOUNTS

    Nikmati belanja murah ditambah diskon spesial

  • 1-DAY SHIPPING

    Pesanan diproses sesaat setelah pembayaran lunas

  • TOP PRODUCTS

    Semua barang kami terjamin mutu dan kualitasnya

  • LOWEST PRICE

    Kami selalu memberikan harga terbaik tanpa mengurangi mutu

Overview of Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W

Better than it looks

This small 2X38W Bluetooth Topping MX3 amplifier is a real quality solution. With a successful design in an aluminium case with a readable display, it will find a place of choice on a desk, a piece of furniture, a shelf.

Features
Rich and Mature Connection Technology

The Topping MX3 is a true Swiss army knife in a compact format that allows you to broadcast the sound of your TV through its optical/coaxial or analog input on speakers or headphones. It lets you listen to your favorite music stored on a computer with its USB input. Thanks to its subwoofer, it is an excellent starting point for 2 satellite speakers and active subwoofer.

Bluetooth NFC and remote control

With a Bluetooth A2DPV1.2 input, AVRCPV1.4 the MX3 allows you to play music from your smartphone, Android tablet or iOS. Pairing is done by NFC, just approach your smartphone on the MX3 and the trick is done: No buttons, no codes to type.

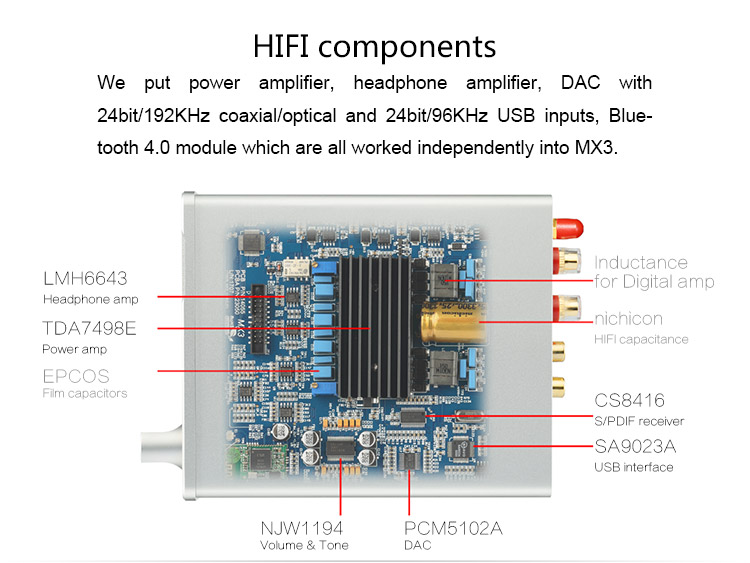

Hifi level components

The MX3 benefits from all the attention with first-class components that guarantee high quality audio reproduction in a liliputian format. It will also be an excellent amplifier for headphones from 16 to 300 Ohm.

Detail Spesification

Main

  • Power input: DC 24V/3.75A

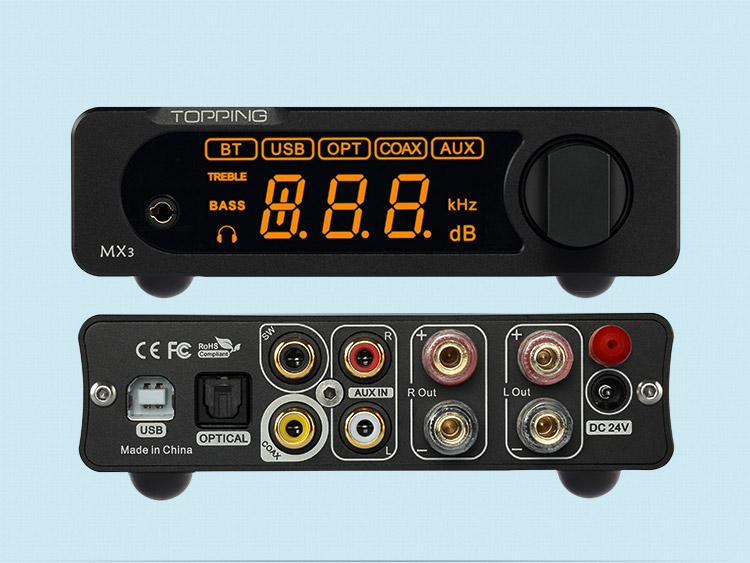

  • Signal input: BT / USB / OPT / COAX / AUX
  • Headphone output: 1 x 3.5 mm (? in)
  • Speaker output: Banana jack, BTL output
  • Subwoofer output: 1 x RCA
  • Bluetooth range: < 32.8 ft (10 m)
  • Display screen: Orange LED
  • Dimensions: 7.3 x 4.8 x 1.5 in (18.5 x 12.2 x 3.8 cm)
  • Weight: 16.8 oz (475 g)

Audio: Aux In, Headphone Out

  • THD+N (A-weighting): <0.006% at 1 kHz, output = 130 mW, RL = 32 ohms
  • SNR (A-weighting): > 103 dB at 1 kHz
  • Frequency response: 20 Hz–200 kHz (+/- 0.1 dB)
  • Output voltage: 10 Vpp
  • Noise: < 18 uVrms
  • Crosstalk: -93 dB at 1 kHz
  • Balance: 0.05 dB
  • IMD CCIF: -81 dB
  • IMD SMPTE:  -78 dB
  • Output impedance: <0.4 ohms
  • Gain: 11.6 dB
  • Output power: 257 mW x 2 at 32 ohms, THD+N <1%; 42 mW x 2 at 300 ohms, THD+N <1%
  • Suitable load impedance: 16–300 ohms

Audio: Aux In, Speaker Out

  • THD+N (A-weighting): <0.05% at 1 kHz, output = 20 W, RL = 8 ohms
  • SNR (A-weighting): >91 dB at 1 kHz
  • Frequency response: 20 Hz–20 kHz (+/- 0.8 db)
  • Output voltage: 46 Vpp
  • Noise: <0.5 mVrms
  • Crosstalk: -75 dB at 1 kHz
  • Balance: 0.05 dB
  • Output impedance: <0.2 ohms
  • Gain: 29.6 dB
  • Output power: 38W x 2 at 8 ohms, THD+N <10%, 40W x 2 at 4 ohms, THD+N <10%
  • Suitable load impedance: 4–8 ohms

DAC

  • USB in: 44.1–96 kHz / 16–24 bit
  • Opt/coax in: 44.1–192 kHz / 16–24 bit
  • Bluetooth: HFPV1.6, A2DPV1.2, AVRCPV1.4
Package Contents

Barang-barang yang Anda dapatkan dalam kotak produk:

  • 1 x Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W
  • 1 x Power adapter
  • 1 x Power cord
  • 1 x USB cable
  • 1 x Remote control
  • 1 x Antenna
  • 1 x User manua

Video YouTube di bawah hanyalah ilustrasi fungsi dan penggunaan produk. Kami tidak menjamin barang kami 100% mirip dengan produk dalam video YouTube tersebut.

Photos of Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W

Video of Topping MX3 Digital Amplifier Bluetooth 4.0 Class D 2x38W

Customer Reviews

Login to review
  • Review dari kuping kaleng-kaleng ane.

    dac ga bagus2 amat ga jelek2 amat standart. bagusnya beli dac lg ane saranin Topping D10, jangan D20 apa lg D30, jelek.
    power amp TDA7498E yg di limitasi menjadi 38watt untuk 8ohm 40watt untuk 4 ohm. ane tes pake bookshelf speaker diy 150watt rms, ane tes di volume 40%-50%-70%. lumayan tapi lebih bagus versi stand alone Topping PA3 yg mempunyai power output 80watt per chanel.
    headphone amp ini yg menjadi idola. untuk drive headphone ber-impediensi tinggi amp ini kurang cocok, amp ini cocok untuk impediensi kecil. SQ lebih bagus dari direct ke hp maupun komputer/laptop. ane tes menggunakan philips fidelio x2, takstar pro82, dan khastadio os-01.

    list lagu pengetesan :
    Beat It-Michael Jackson
    Champagne Supernova-Oasis
    Come Together - The Beatles

    kalo mau yg lebih bagus dari ini beli langsung dari Ali Cepat SMSL AD18, semua review ane diatas d libas.
