Overview of Topping NX4 DSD Portable USB DAC Headphone Amplifier

High-Res Audio, Long Playback Time

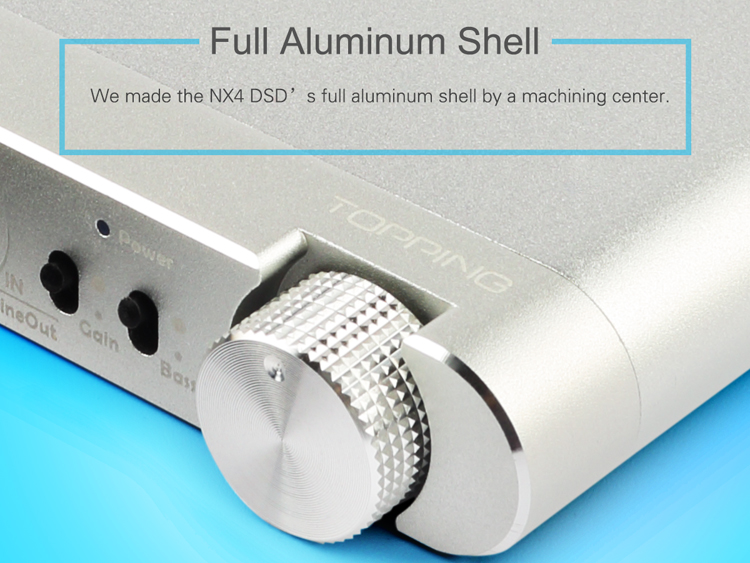

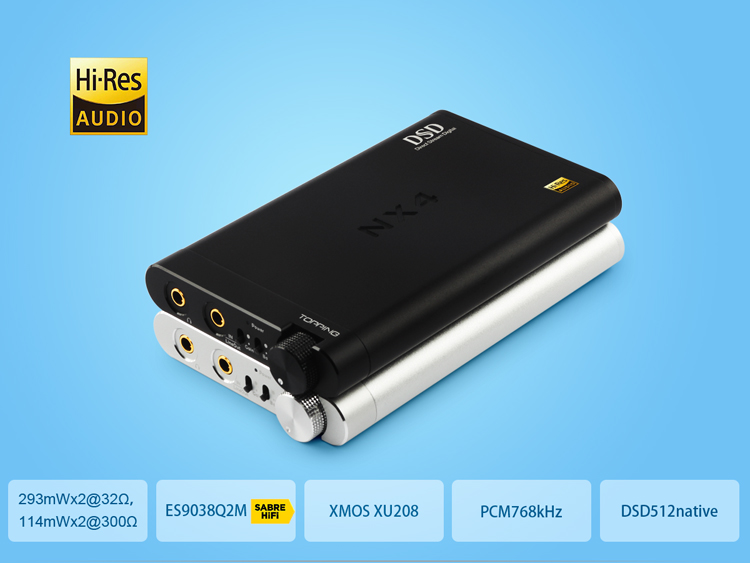

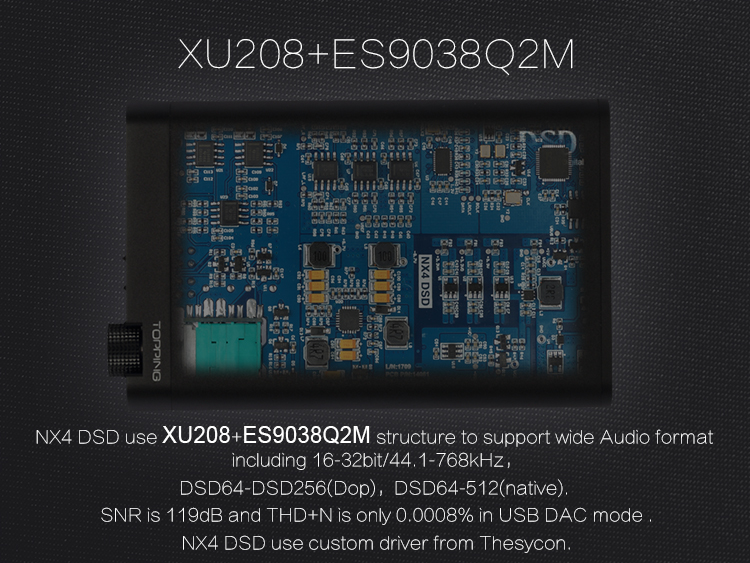

A great pairing for laptops and smartphones, the Topping NX4 DSD is a compact DAC/amp loaded with impressive specs. It’s equipped with the well-regarded Sabre ES9038Q2 DAC, along with an XU208 USB bridge, and it supports some of the highest-resolution audio—including 32 bit/768 kHz, DSD256 (DoP), and DSD512 (native). For easy use when you’re on the go, the NX4 DSD comes with rubber bands and Velcro feet to attach to your smartphone or digital music player. It provides 28 hours of playback when the headphone amp is used and 7.5 hours of playback when the DAC and amp are used together. Featuring a full aluminum shell, the unit is smaller than your average phone and weighs just over 5 ounces.

Detail Spesification

Headphone Amplifier

  • THD+N (A-weighted): <0.0009% at 1 kHz output = 140 mW (32 ohms), <0.0037% at 20 Hz–20 kHz output = 140 mW (32 ohms), <0.00046% at 1 kHz output = 57 mW (300 ohms), <0.0005% at 20 Hz–20 kHz output = 57 mW (300 ohms)
  • SNR (A-weighted): >120 dB at 1 kHz

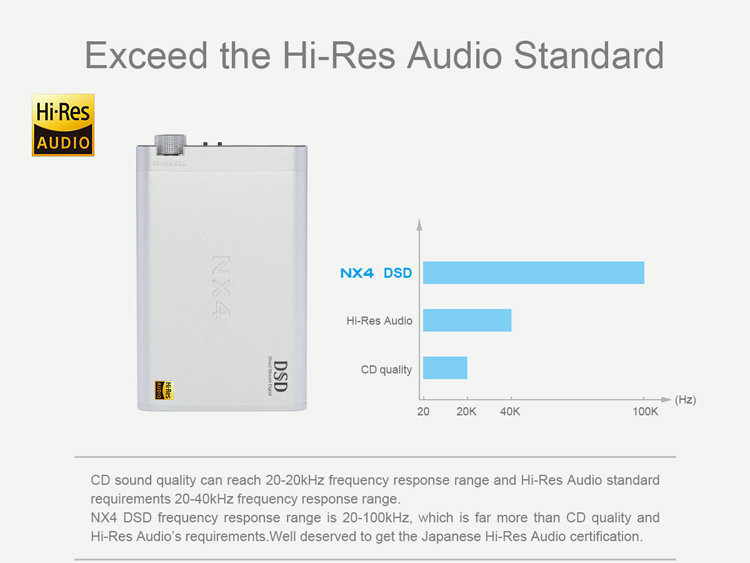

  • Frequency response: 20 Hz–100 kHz (+/- 0.55 dB)
  • Output level: 8.3 Vpp at 32 ohms gain = L, bass = off; 16.4 Vpp at 300 ohms gain = L, bass = off
  • Noise: <2.5 uVrms at gain = L, <6.4 uVrms at gain = H
  • Channel crosstalk: -96 dB at 1 kHz
  • Channel balance: 0.038 dB
  • IMD CCIF: -100 dB at 300 ohms, -94 dB at 32 ohms, CCIF (19.5 k/1k)
  • IMD SMPTE: -103 dB at 300 ohms, -96 dB at 32 ohms, SMPTE4:1; -108 dB at 300 ohms, -98 dB at 32 ohms, SMPTE1:1
  • Output impedance: <0.4 ohms
  • Gain: 0 dB / 8.8 dB
  • Bass: 0 dB / 0.4 dB (70 Hz)

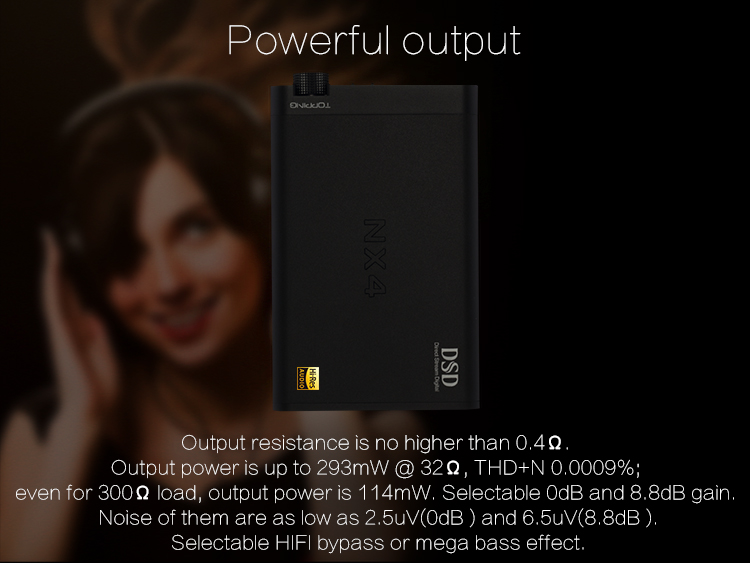

  • Output power: 293 dB x 2 at 32 ohms, THD+N <1%; 114 mW x 2 at 300 ohms, THD+N <1%
  • Adapter impedance: 16–300 ohms

DAC (Line Out)

  • Compatible: 44.1–768 kHz / 16–32 bit, DSD 64–256 (DoP), DSD 64–512 (native)
  • THD+N (A-weighted): <0.0008% at 1 kHz
  • SNR (A-weighted): >119 dB at 1 kHz
  • Frequency response: 20 Hz–20 kHz (+/- 0.041 dB)
  • Output level: 2 Vrms at 0 dBFS
  • Noise: <2.2 uVrms
  • Channel crosstalk: -108 dB at 1 kHz

Physical

  • Power input: DC 5V/1.5A (PC’s USB 0.5A is okay)
  • Line in/out: 3.5mm
  • Headphone output: 3.5mm
  • USB DAC input: Micro-USB
  • Battery capacity: 2,400 mAh
  • Charge time: <4 hrs

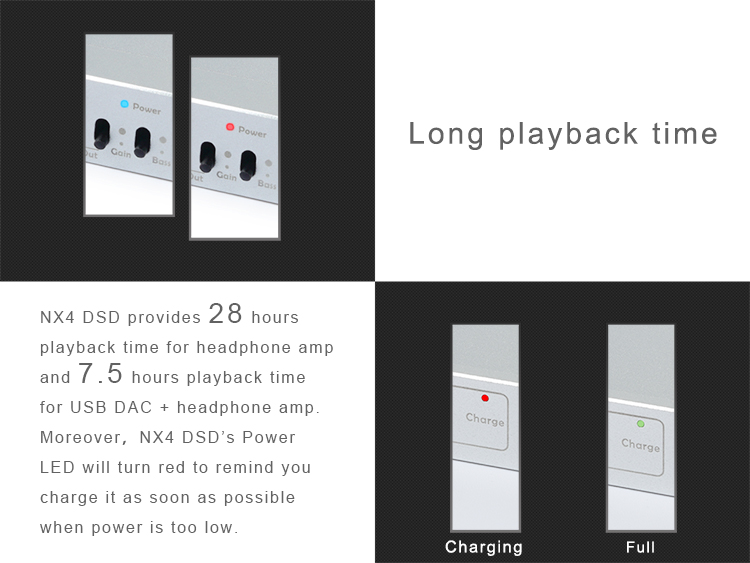

  • Playback time: >28 hrs (headphone amp mode), >7.5 hrs (USB DAC mode)
  • Power LED: Blue light (lights red to indicate low battery)
  • Charge LED: Light red when charging, light green when charge is complete
  • DAC LED: Blue means valid connection and playing PCM format, red means playing DSD format
  • Dimensions: 4.3 x 2.7 x 0.6 in (11 x 6.8 x 1.4 cm)
  • Weight: 5.2 oz (148 g)
Package Contents

Barang-barang yang Anda dapatkan dalam kotak produk:

  • 1 x Topping NX4 DSD Portable USB DAC Headphone Amplifier
  • 1 x Micro-USB to Micro USB
  • 1 x Type-C to Micro USB
  • 1 x Rubber pad
  • 1 x USB charging cable
  • 1 x 3.5mm cable
  • 2 x Rubber band
  • 1 x Velcro feet
  • 1 x User manual

Video YouTube di bawah hanyalah ilustrasi fungsi dan penggunaan produk. Kami tidak menjamin barang kami 100% mirip dengan produk dalam video YouTube tersebut.

Photos of Topping NX4 DSD Portable USB DAC Headphone Amplifier

Video of Topping NX4 DSD Portable USB DAC Headphone Amplifier

Customer Reviews

Login to review
  • Mantull

    by auzanmhd on Dec 17th 2018 1 / 1 people found this review helpful
    Barang mantep, order hari minggu barang udah nangkring di rumah besoknya. Kurangnya palingan ga ada bubble warp sih di packingnya.
    Colok Xiaomi Mi A1, langsung kedetek DAC NX4 via PowerAmp terbaru. Naik segala sektor sih gua bilang. Ga nyesel lah beli NX4. Thanks Jaknot
  • Sesuai Harga nya

    by Frans okta on Oct 25th 2018 1 / 1 people found this review helpful
    barang bagus, Bisa lgs konek ke Win 10HE, Android (Note 8), iOS (mesti beli kabel data lighting to micro usb).

    karakter bright, High Freq nya bagus dan seperasi nya jd mantep.

    Aga kurang Ok kalo ama EIM low impedance dan High Sensitivity...

    Tapi bener2 cocok utk Headphone Impedance besar (DT990Pro 250), salah satu DAC/AMP yg bisa optimalin HP yg impedance besar, hanya dgn low gain.

    Bass boster nya pengaruh bgt...

    best buy utk DAC/AMP DSD ini...
