Name: TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210
Brand: TP-LINK
SKU: TLWR0HWH
Price: 421100 IDR
Availability: LimitedAvailability

People also Bought

Overview of TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210

TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 27dBm/500mw
System-level optimizations for more than 5km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Features

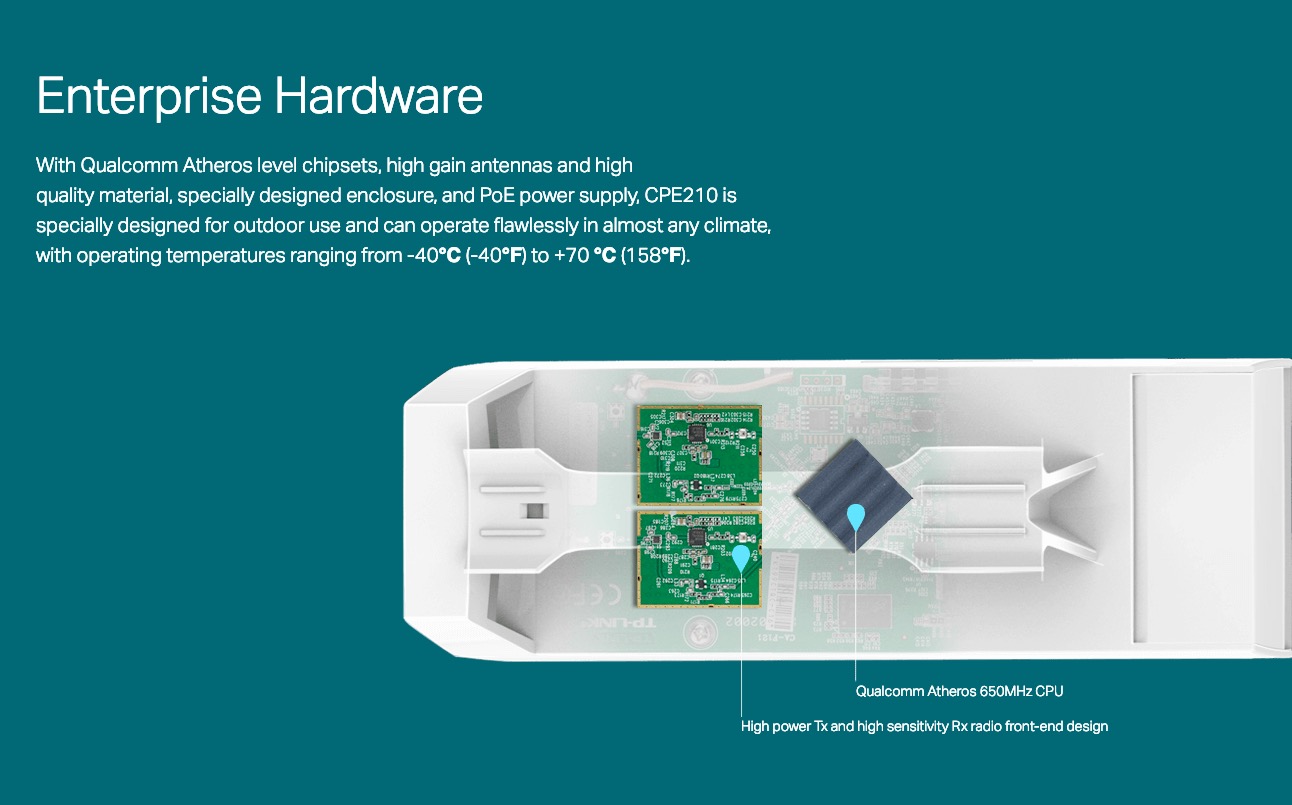

Enterprise Hardware

With Qualcomm Atheros level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40? (-40?) to +70 ? (158?).

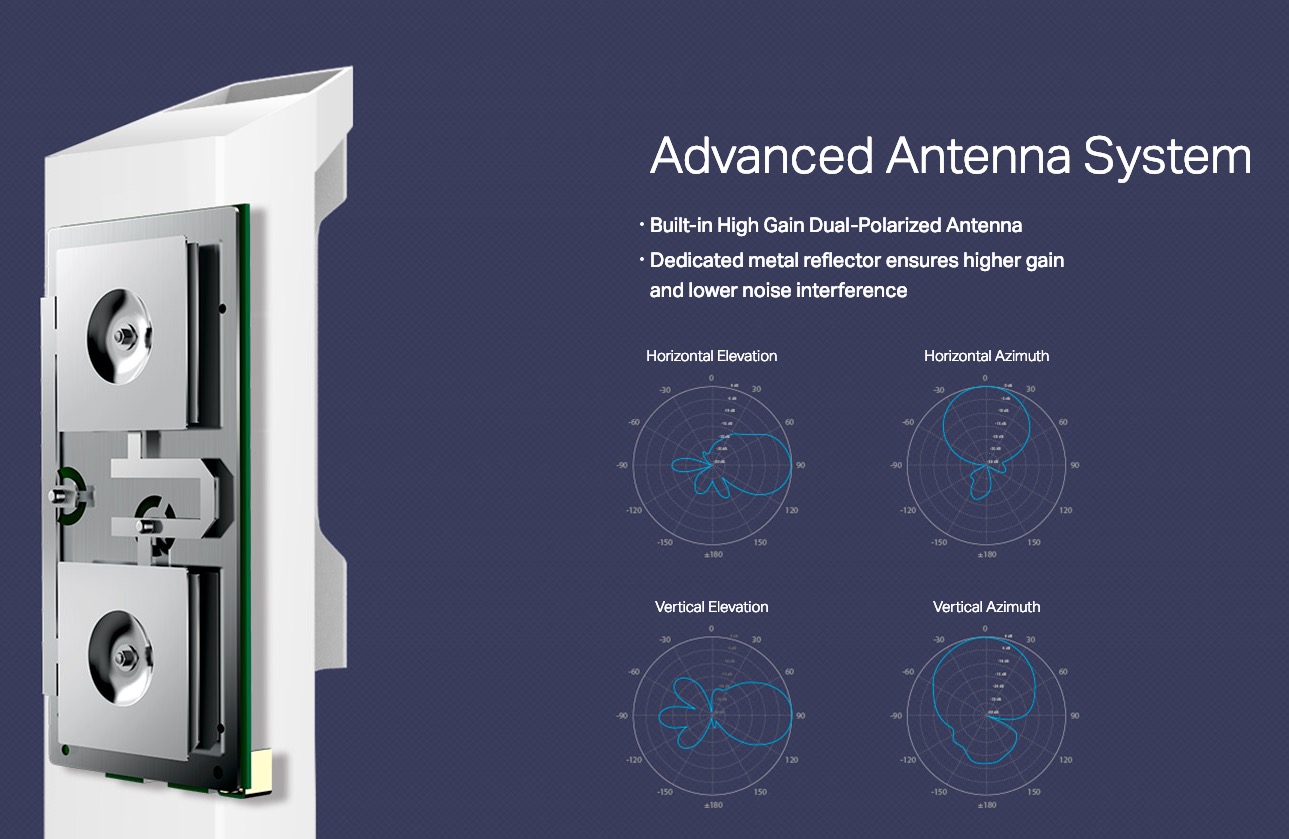

Advanced Antenna System

Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference

5km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

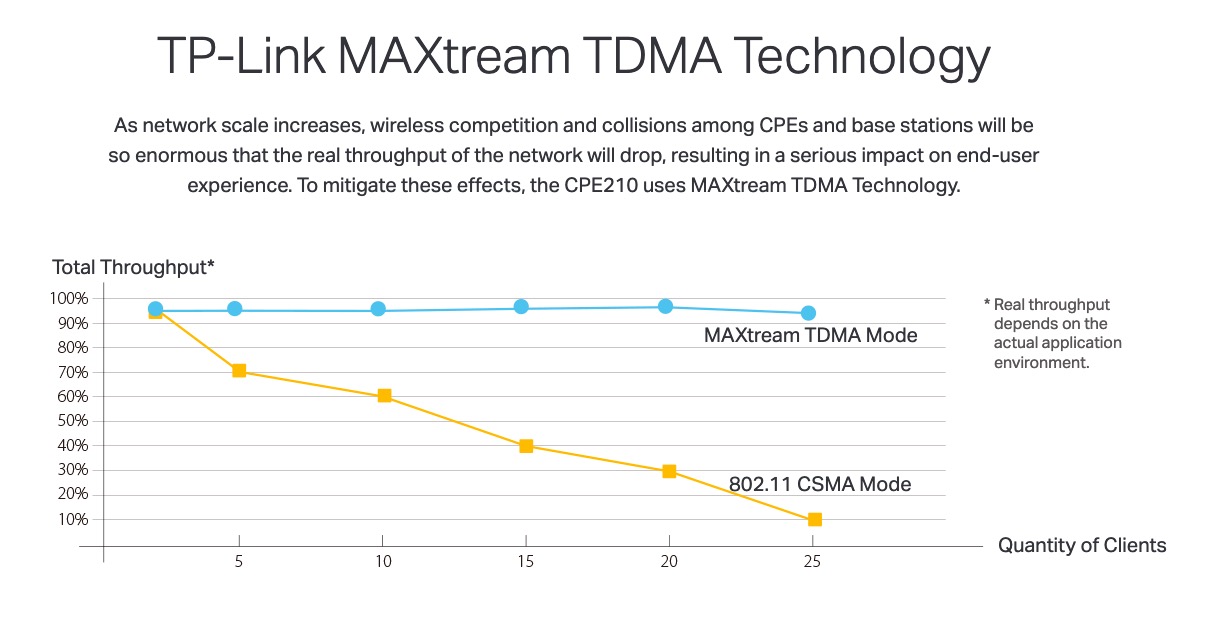

TP-Link MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

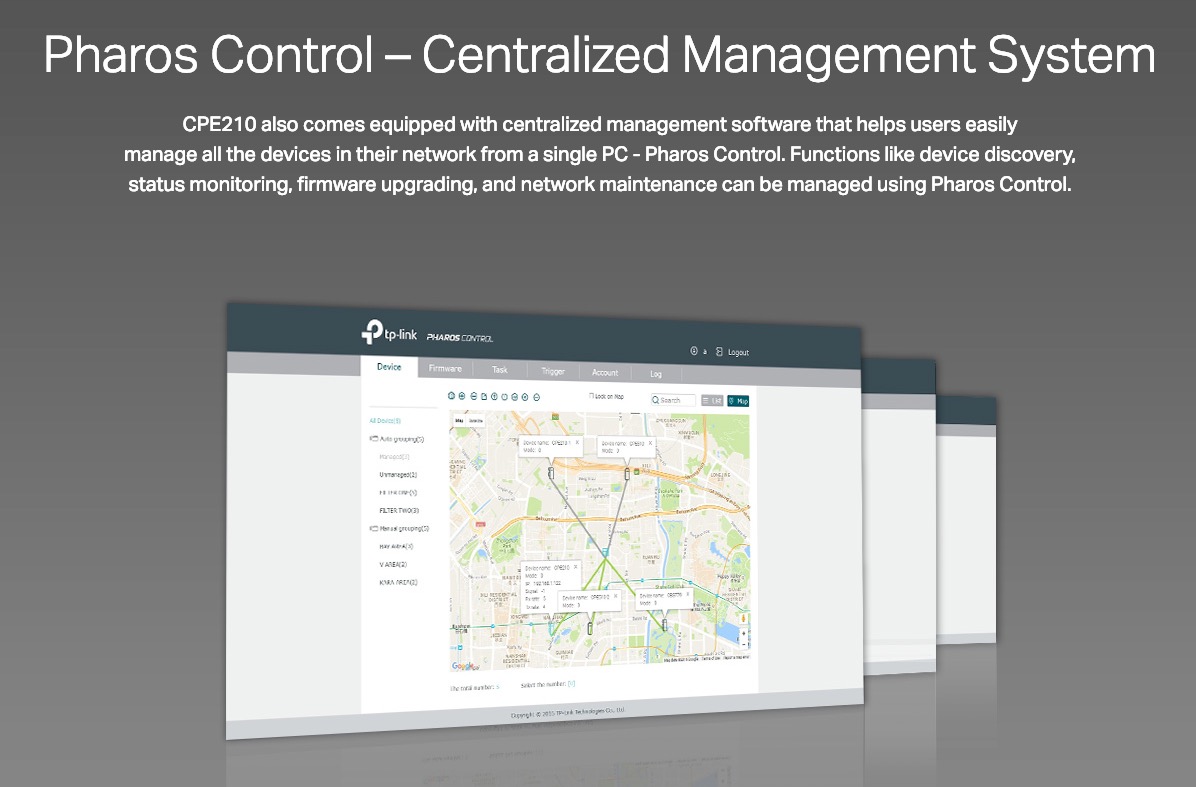

Pharos Control – Centralized Management System

CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

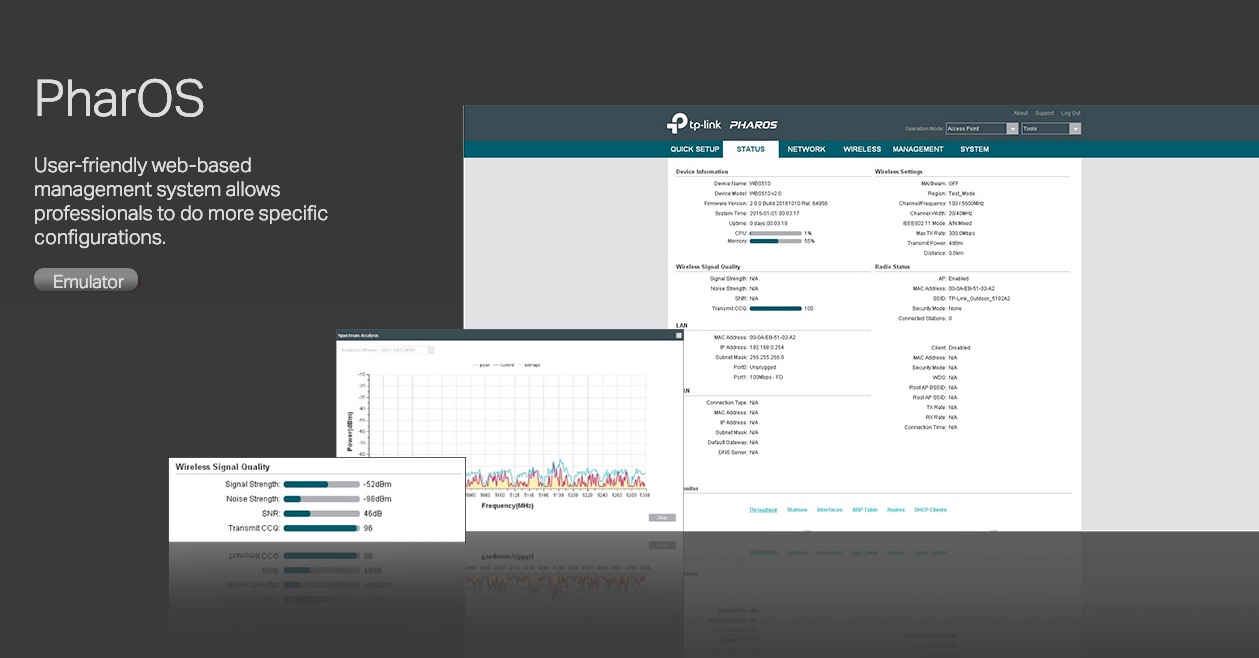

PharOS

User-friendly web-based management system allows professionals to do more specific configurations.

Package Contents

All item you get from the box:

Outdoor Wireless CPE
24V 0.6A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

Video YouTube yang ditampilkan hanyalah ilustrasi fungsi dan penggunaan produk. Kami tidak menjamin barang kami 100% mirip dengan produk dalam video YouTube tersebut.

Photos of TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210

TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210 - White - 1

TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210 - White - 2

TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210 - White - 3

TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210 - White - 4

TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210 - White - 5

TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210 - White - 6

TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210 - White - 7

TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210 - White - 8

Video of TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210

Technical Specifications of TP-LINK Outdoor CPE 2.4GHz 300Mbps 9dBi Antena Access Point - CPE210

Chipset	Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc Memory: 64MB DDR2 RAM, 8MB Flash
Input Voltage	Input Current: 0.4A Max @ 100VAC Input Voltage: 100VA~240VAC @ 50Hz~60Hz
Output Voltage	Output: 24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Output Voltage: 24VDC(+4,5pins; -7,8pins)
Input Device Type	1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
Wireless Network Type	Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds: Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Frequency: 2.4~2.483GHz Transmission Power: 27dBm/500mw (Adjustable power by 1dBm)
Software Support	Microsoft Windows 98SE, NT, 2000, XP, Vista? or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Dimension	224 x 79 x 60 mm
Others	Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC Power Consumption: 10.5 Watts Max Antenna Type: Built-in 9dBi 2x2 Dual-polarized Directional Antenna Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane)
